How to design dental model with hexagon(Honeycomb) infill base?

[Jin ahn]

My boss is asking me for find the way to make the model to be hollow + honeycomb infill base for reducing the resin cost and durability.
I've searched for few hours at google, but cannot find the method unless i become pro 3D designer.
I never used other program than 3Shape model builder & Meshmixer for building the model.

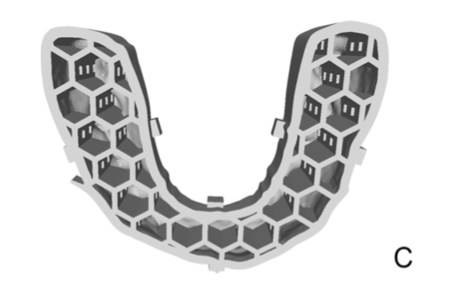

I've attached the photo that i think the ideal form of what my boss is asking.
Is there any simple way to make that base?



[erykd1]

Gotta use blender for dental, it's one of the built in designs. Not too difficult to learn, but it involves adding another program to your workflow.



[Car 54]

So the workflow would be what, 3Shape model builder, into Blender then into the slicing software? Who has time for all of that? In 3Shape why not just make the sides a little thicker for strength, you still may be saving resin and probably printing time in printing the honeycombs.



[zero_zero]

Just fill yer hollow models with plaster... problem solved



[Toothman19]

Some slicer software will add it to the models



[Car 54]

Some slicer software will add it to the models

I haven't gotten that far along with printing to know, which one(s) are compatible?



[rlhhds]

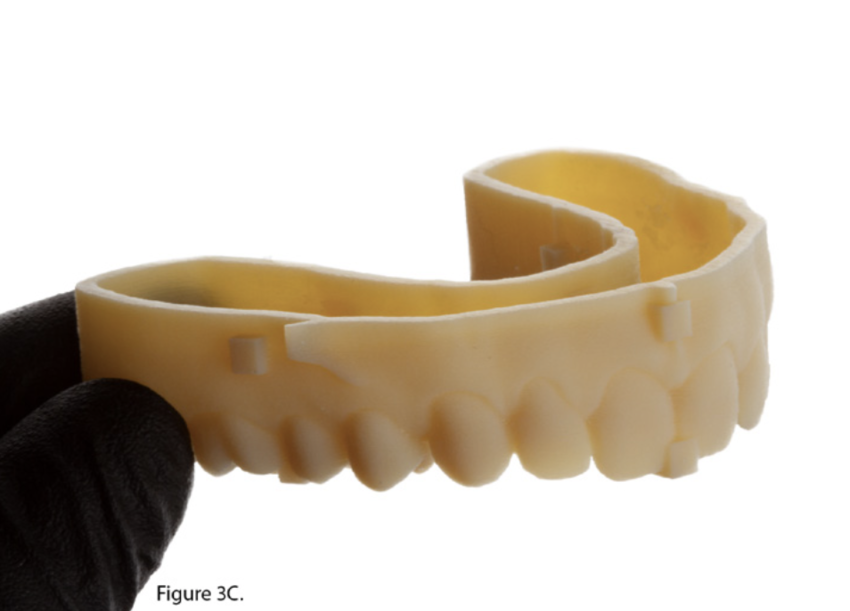

That hex design looks like it is from Hey Gears model builder. We do not use that style it adds quite a bit of cost to build the models. We use the mesh type design it only covers the base not the entire inside of the model. Before we got our Hey Gears printer we just printed them hollow and didn’t have any issues doing that. If we felt we needed to have a more solid model we either printed just that one solid or put plaster in it.



[MasterCeramist]

You can do this with medit model builder as well.



[Jin ahn]

Gotta use blender for dental, it's one of the built in designs. Not too difficult to learn, but it involves adding another program to your workflow.

You can do this with medit model builder as well.

You saved my life. Thank you



[DigiSculpt Design Center]

Master is right medit model builder can do this natively



Hypothetically you can extrude any pattern from the mesh in windows 3D builder and then plane cut it in meshmixer but...



[tuyere]

Yeah, you really don't need a honeycomb infill, a hollow model with a sufficiently-thick sidewall should be strong enough for almost everything except vac-forming or operations involving a lot of compressive force. It'll consume twice as much resin for a negligible benefit. If your boss insists, just add a base-plate with holes, it also won't make much of a difference but it's more economical than the hex thing and it'll trap less resin inside (which will always leak out during post-curing and make a mess / ruin details on the part) .



[Sevan P]

Blender for dental and or if you have a heygears printer i has this as one of the option to fill a hollow model.



[dentallabmne]

Exocad Elesfina can do that, it has the honeycomb option, you dont have to use it for the design maybe only use it for the model?
Export the scans from 3shape and import them in exocad and make the model?



[Kongo-Otto]

chitubox dental can do different infills too



[MrNeverFixit]

My boss is asking me for find the way to make the model to be hollow + honeycomb infill base for reducing the resin cost and durability.
I've searched for few hours at google, but cannot find the method unless i become pro 3D designer.
I never used other program than 3Shape model builder & Meshmixer for building the model.
I've attached the photo that i think the ideal form of what my boss is asking.
Is there any simple way to make that base?

Honey comb base can be done easily in Medit app. Its free, just download the medit app and inside the medit app, download the Model builder. There are some videos on youtube by medit app look it up. Very simple to use.



[Thibaut]

Got all your answers buddy, though if your boss insists do tell him that it'll cost him more resin but most of all alcohol, you'll have to change it more regularly.
